Açıklama

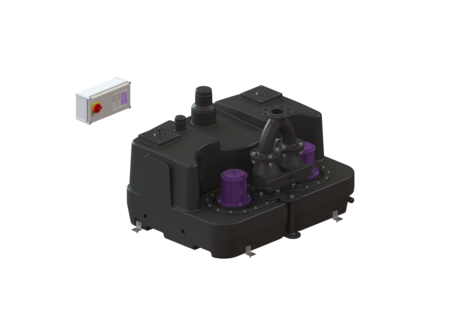

Variant
Type of system: duo pump
Shut-off valve: without shut-off valve
Backflow preventer: integrated
Pressure pipe connection: vertical

General characteristics
Colour: black
Standard: EN 12050-1
Type of wastewater: with sewage
Installation situation: free-standing installation
System type: Duo

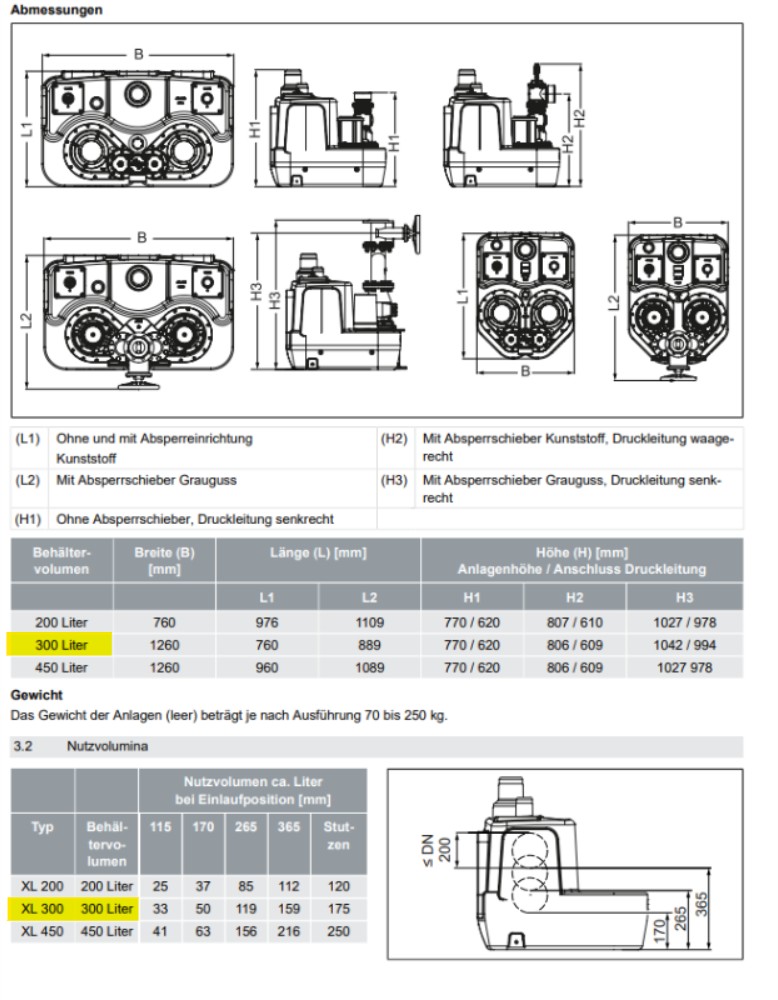

Dimensions
Net weight: 182,57 kg
Gross weight: 202,57 kg
Packaging dimension: length: 1650 mm
Packaging dimension: width: 1150 mm
Packaging dimension: height: 890 mm

Tank/drain body
Tank volume: 300 l

Pumping device
Pump: SPF 3000-S3
Number of pumps: 2
Operating mode: S3 – 50 %
Impeller type: Multi-vane impeller
Free passage: 40 mm
Length of mains cable for pump: 5 m

Control
Control unit: Comfort
Level measurement instrument: Immersion pipe
Type of level measurement: pneumatic
Mains frequency: 50 Hz
Operating voltage: 400 V
