Açıklama
Variant

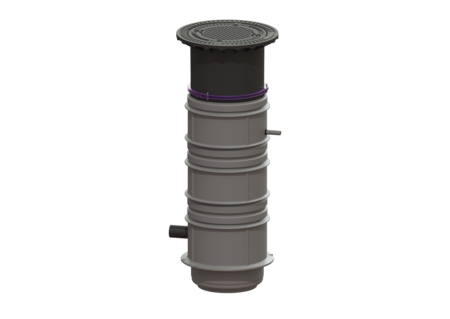

Type of system: Single unit
Passage seal for conduit pipe (DN): 100
Passage seal for ventilation pipe (DN): 100
Installation: Wet installation
Pump control: Float switch
Backflow preventer: integrated
Pressure pipe connection: horizontal
Chamber system: LW 600
General characteristics
Colour: black
Standard: EN 12050-2
Type of wastewater: without sewage
Installation situation: underground installation
Delivery state: Modular set for assembly on site
System type: Mono
Dimensions
Net weight: 165 kg
Gross weight: 177 kg
Groundwater resistant from lower edge of base section: 2000 mm
Installation depth: 1800 – 2250 mm
Type of height adjustability: vertically adjustable upper section
Length: 806 mm
Width: 806 mm
Packaging dimension: length: 1200 mm
Packaging dimension: width: 800 mm
Packaging dimension: height: 2220 mm
Tank/drain body
Pressure pipe connection (DN): 32
Pressure pipe connection (OD): 40 mm
Connection conduit pipe (DN): 100
Venting connection (DN): 100
Distance from centre of outlet pipe to tank bottom: 1394 mm
Distance pipe bottom inlet to tank bottom: 400 mm
Distance from centre of inlet pipe to tank bottom: 455 mm
Inlet nominal size (OD): 160 mm
Inlet nominal size (DN): 150 mm
Number of inlets: 1
Clear width of tank (LW): 600 mm
Clear width of entry (LW): 600 mm
Coverage features
Type of cover: Round cover plate
Cover material: Grey iron with concrete filling
Colour of cover: black
Width of cover: 680 mm
Height of cover: 50 mm
Length of cover: 680 mm
Locking: unlocked
Load class: D 400 (EN 124)
Pumping device
Pump: GTF 1200
Number of pumps: 1
Weight, pump: 10 kg
Connection type: Schuko (earthed contact) 2-pin
Operating voltage: 230 V
Protection class: I
Insulation class: F
Cos phi – power factor: 0,98
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 15,5 m³/h
Max. pumping height: 9 m
Speed: 2650 U/min
Power P1: 1,4 kW
Power P2: 0,84 kW
Operating mode: S3 – 50 %
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Type of fuse required (electrical protection): C 16 A
Length of mains cable for pump: 10 m
Rated current: 6,2 A
Control
Level measurement instrument: Float switch
Type of level measurement: mechanical
Operating voltage: 230 V
Connection type: Schuko (earthed contact) 2-pin
Length of mains cable for control unit: 1,4 m
