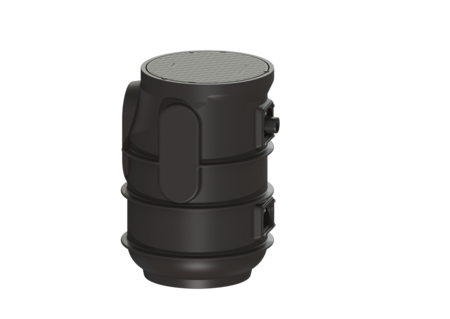

Açıklama
Variant
Type of system: duo pump
Installation: Wet installation
Pump control: Control unit
Backflow preventer: integrated
General characteristics
Colour: black
Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements)
Type of wastewater: for wastewater with and without sewage
Installation situation: underground installation
System type: Duo
Dimensions
Net weight: 41 kg
Gross weight: 51 kg
Length: 615 mm
Width: 600 mm
Height: 830 mm
Packaging dimension: length: 1200 mm
Packaging dimension: width: 800 mm
Packaging dimension: height: 954 mm
Tank/drain body
Pressure pipe connection (DN): 50
Pressure pipe connection (OD): 63 mm
Inlet max. scoring (DN): 100 mm
Pumping volume: 60 l
Coverage features
Type of cover: Round cover plate
Colour of cover: black
Locking: lockable
Load class: up to 300 kg
Pumping device

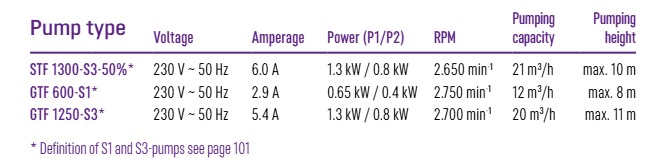

Pump: STF 1300
Number of pumps: 2
Weight, pump: 10 kg
Connection type: Schuko (earthed contact) 2-pin
Rated current: 6 A
Protection class: I
Insulation class: F
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 21 m³/h
Max. pumping height: 10 m
Speed: 2650 U/min
Power P1: 1,3 kW
Power P2: 0,8 kW
Operating mode: S3 – 50 %
Type of fuse required (electrical protection): C 16 A
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Free passage: 40 mm
Length of mains cable for pump: 10 m
Control
Control unit: Basic
Control unit function: With alarm message
Motor protection switch: yes
Alarm sensor: Float switch
Level measurement instrument: Float switch
Type of level measurement: mechanical
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: Schuko (earthed contact) 2-pin
Length of mains cable for control unit: 1,45 m
Potential-free contact: optional
Battery buffering: yes
Self-diagnosis system (SDS): yes
Warning equipment version: acoustic and optical signal
Type of fuse required (electrical protection): C 16 A
