Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth – Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m
Variant
Type of system: Single unit
Shut-off valve: Shut-off valve made of polymer
Passage seal for conduit pipe (DN): 100
Access steps: yes
Passage seal for ventilation pipe (DN): 100
Installation: Wet installation
Pump control: Control unit
Backflow preventer: integrated
Pressure pipe connection: horizontal
General characteristics
Colour: black
Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements)
Type of wastewater: for wastewater with and without sewage
Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
System type: Tronic
Dimensions
Net weight: 153 kg
Gross weight: 177 kg
Groundwater resistant from lower edge of base section: 3000 mm
Length: 1300 mm
Width: 1300 mm
Height: 1416 mm
Packaging dimension: length: 2000 mm
Packaging dimension: width: 1300 mm
Packaging dimension: height: 1550 mm

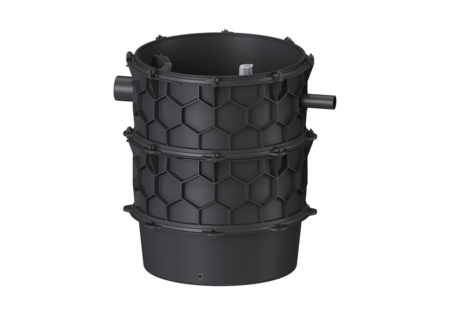

Tank/drain body
Pressure pipe connection (DN): 80
Pressure pipe connection (OD): 90 mm
Inlet nominal size (OD): 160 mm
Inlet nominal size (DN): 150 mm
Number of inlets: 1
Clear width of tank (LW): 1000 mm
Pumping volume: 350 l
Pumping device
Pump: GTF 1400
Number of pumps: 1
Weight, pump: 22 kg
Connection type: Direct connection
Protection class: I
Insulation class: H
Cos phi – power factor: 0,99
Protection class (pump): IP 68 (20m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 31 m³/h
Max. pumping height: 10,5 m
Speed: 2900 U/min
Power P1: 1,5 kW
Power P2: 1,1 kW
Operating mode: S1
Type of pump connection cable: H07RN-F 4G 1.5 mm² mm²
Impeller type: Multi-vane impeller
Length of mains cable for pump: 10 m
Rated current: 6,5 A
Control
Control unit: Comfort
Control unit function: With alarm message
Motor protection switch: yes
Alarm sensor: Level sensor
Level measurement instrument: Level sensor
Type of level measurement: hydrostatic
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: Direct connection
Length of mains cable for control unit: 1,4 m
Potential-free contact: optional
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
Warning equipment version: acoustic and optical signal
