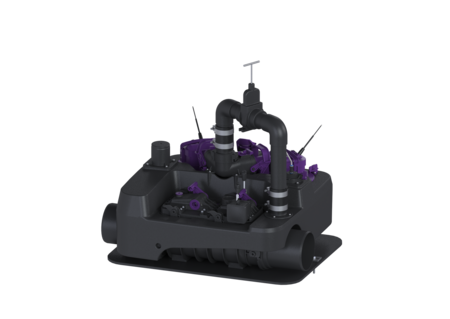

During the backwater phase the wastewater drains via integrated pressure pipe. Including a backflow preventer and shut-off valve for the pressure pipe. Including penetration seals DN 70 for the on-site ventilation pipe Polymer closure system for the drainage pipe for safe closure of the drainage pipe in the event of backwater. Consisting of a hinged flap including an emergency closure (for manual locking if required) and an electrically powered closure mechanism including a probe protected against wire breakage for the detection of backwater.

Control units with an integrated self-diagnosis system (SDS), display of the operating states and integrated battery back-up for alarm signals. User-friendly menu guidance in a multi-line display. With a self-diagnosis system (SDS) and reminder when maintenance is due. Display of the current measured values. Simple adjustment of the function-related parameters, including the operating hour counter and potential-free contact. Optional relaying of alarm and collective error messages via the GSM interface.

Control unit with a full text display in six languages.

General characteristics

Colour: black

Type of wastewater: with sewage

Installation situation: exposed drainage pipe

Approval: Z-53.2-493

Type de protection moteur: IP 68

Dimensions

Net weight: 50,47 kg

Gross weight: 76,19 kg

Length: 700 mm

Width: 850 mm

Height: 839 mm

Packaging dimension: length: 855 mm

Packaging dimension: width: 775 mm

Packaging dimension: height: 640 mm

Tank/drain body

Pressure pipe connection (DN): 50

Pressure pipe connection (OD): 63 mm

Outlet nominal size (DN): 150 mm

Pumping volume: 20 l

Wastewater contents

Total volume: 66 l

Pumping device

Pump: SPF 1350

Number of pumps: 2

Operating voltage: 230 V

Protection class (pump): IP 68 (3m/48h)

Max. pumping capacity: 26 m³/h

Max. pumping height: 10 m

Power P1: 1,35 kW

Power P2: 0,86 kW

Operating mode: S3 – 50 %

Type of fuse required (electrical protection): C 16 A

Impeller type: Multi-vane impeller

Free passage: 40 mm

Length of mains cable for pump: 5 m

Length of mains cable for flap motor: 5 m

Rated current: 6 A

Control

Control unit: Comfort

Level measurement instrument: Immersion pipe

Type of level measurement: pneumatic

Mains frequency: 50 Hz

Operating voltage: 230 V

Length of mains cable for control unit: 1 m

Type of fuse required (electrical protection): C 16 A
