Açıklama

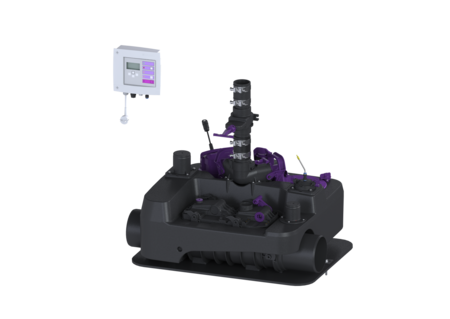

Drainage during the backwater phase takes place via an on-site pressure pipe that can be connected above the backwater level. Including a backflow preventer and shut-off valve for the pressure pipe. Including penetration seals DN 70 for the on-site ventilation pipe Polymer closure system for the drainage pipe for safe closure of the drainage pipe in the event of backwater. Control unit with an integrated self-diagnosis system (SDS), display of the operating states and integrated battery back-up for alarm signals. User-friendly menu guidance in a multi-line display. With a self-diagnosis system (SDS) and reminder when maintenance is due. Display of the current measured values. Simple adjustment of the function-related parameters, including the operating hour counter and potential-free contact. Optional relaying of alarm and collective error messages via the GSM interface. Control unit with a full text display in six languages.
General characteristics
Colour: black
Type of wastewater: without sewage
Installation situation: exposed drainage pipe
Approval: Z-53.2-493
Type de protection moteur: IP 68
Dimensions
Net weight: 36,68 kg
Gross weight: 62,4 kg
Length: 700 mm
Width: 850 mm
Height: 736 mm
Packaging dimension: length: 855 mm
Packaging dimension: width: 775 mm
Packaging dimension: height: 640 mm
Tank/drain body
Pressure pipe connection (DN): 50
Pressure pipe connection (OD): 63 mm
Outlet nominal size (DN): 150 mm
Pumping volume: 20 l
Wastewater contents
Total volume: 66 l
Pumping device
Pump: SPF 1350
Number of pumps: 1
Operating voltage: 230 V
Rated current: 6 A
Protection class (pump): IP 68 (3m/48h)
Max. pumping capacity: 26 m³/h
Max. pumping height: 10 m
Power P1: 1,35 kW
Power P2: 0,86 kW
Operating mode: S3 – 50 %
Type of fuse required (electrical protection): C 16 A
Impeller type: Multi-vane impeller
Free passage: 40 mm
Length of mains cable for pump: 5 m
Control
Control unit: Comfort
Level measurement instrument: Immersion pipe
Type of level measurement: pneumatic
Mains frequency: 50 Hz
Operating voltage: 230 V
Length of mains cable for control unit: 1 m
Type of fuse required (electrical protection): C 16 A
