Açıklama

Variant

Type of system: Single unit

Backflow preventer: integrated

Pressure pipe connection: horizontal

General characteristics

Colour: white

Standard: EN 12050-3

Type of wastewater: with sewage

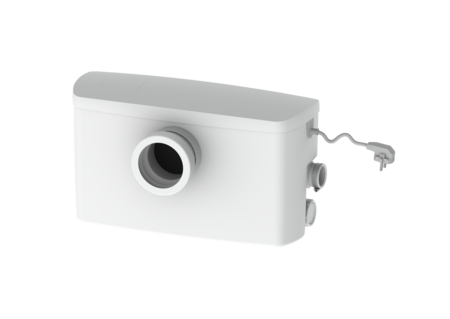

Installation situation: free-standing installation

Delivery state: plug-in ready

Dimensions

Net weight: 7,33 kg

Gross weight: 7,53 kg

Length: 488 mm

Width: 237 mm

Height: 285 mm

Packaging dimension: length: 600 mm

Packaging dimension: width: 240 mm

Packaging dimension: height: 330 mm

Tank/drain body

Pressure pipe connection (OD): 28 mm

Distance from centre of outlet pipe to tank bottom: 108 mm

Distance from centre of inlet pipe to tank bottom: 180 mm

Inlet nominal size (OD): 110 mm

Inlet nominal size (DN): 100 mm

Number of inlets: 3

Pumping volume: 4 l

Tank volume: 11 l

Pumping device

Number of pumps: 1

Connection type: Schuko (earthed contact) 2-pin

Rated current: 2,8 A

Protection class: I

Protection class (pump): IP 44

Temperature monitoring: integrated

Max. temperature (permanent) of conveyed material: 35 °C

Hot water resistance for a short time (2 min): 80 °C

Max. pumping height: 6,4 m

Speed: 2900 U/min

Power P1: 0,65 kW

Power P2: 0,35 kW

Operating mode: S3 – 30 %

Type of pump connection cable: H03 VV-F 3G 0.75 mm²

Impeller type: Macerator

Length of mains cable for pump: 1,6 m

Control

Type of level measurement: pneumatic

Operating voltage: 230 V

Connection type: Schuko (earthed contact) 2-pin
