Açıklama

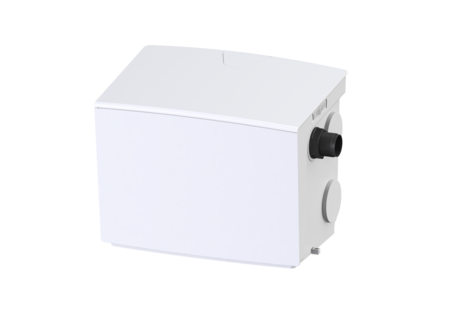

The system offers flexible and simple options for on-site installation.

– Resistance to hot water and brine

– Discharge side backflow preventer integrated in the factory

– Powerful pump with multi-vane vortex impeller for maximum operating safety

– Tool-free maintenance

Variant

Type of system: Single unit

Pump control: Float switch

Backflow preventer: integrated

Pressure pipe connection: horizontal

General characteristics

Colour: white

Standard: EN 12050-2

Type of wastewater: without sewage

Installation situation: free-standing installation

Delivery state: plug-in ready

Dimensions

Net weight: 16 kg

Gross weight: 16,35 kg

Length: 425 mm

Width: 300 mm

Height: 340 mm

Packaging dimension: length: 455 mm

Packaging dimension: width: 380 mm

Packaging dimension: height: 350 mm

Tank/drain body

Pressure pipe connection (DN): 32

Pressure pipe connection (OD): 40 mm

Number of inlets: 5

Pumping volume: 7 l

Tank volume: 30 l

Inlet vertical (DN): 40

Inlet horizontal (DN): 50

Pumping device

Pump: GTF 1000

Number of pumps: 1

Weight, pump: 10 kg

Connection type: Schuko (earthed contact) 2-pin

Rated current: 5,6 A

Protection class: I

Protection class (pump): IP 68 (3m)

Temperature monitoring: integrated

Max. temperature (permanent) of conveyed material: 40 °C

Hot water resistance for a short time (2 min): 80 °C

Max. pumping capacity: 14,5 m³/h

Max. pumping height: 10 m

Speed: 2800 U/min

Power P1: 1,27 kW

Power P2: 0,73 kW

Operating mode: S3 – 50 %

Type of fuse required (electrical protection): C 16 A

Type of pump connection cable: H07RN-F 3G 1.5 mm²

Impeller type: Multi-vane impeller

Free passage: 10 mm

Length of mains cable for pump: 5 m

Control

Level measurement instrument: Float switch

Type of level measurement: mechanical

Mains frequency: 50 Hz

Operating voltage: 230 V

Connection type: Schuko (earthed contact) 2-pin

Type of fuse required (electrical protection): C 16 A
