Açıklama

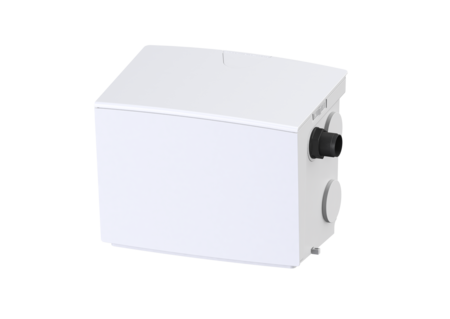

The system offers flexible and simple options for on-site installation.
– Resistance to hot water and brine
– Discharge side backflow preventer integrated in the factory
– Powerful pump with multi-vane vortex impeller for maximum operating safety
– Tool-free maintenance
Variant
Type of system: Single unit
Pump control: Float switch
Backflow preventer: integrated
Pressure pipe connection: horizontal
General characteristics
Colour: white
Standard: EN 12050-2
Type of wastewater: without sewage
Installation situation: free-standing installation
Delivery state: plug-in ready
Dimensions
Net weight: 12,1 kg
Gross weight: 12,1 kg
Length: 425 mm
Width: 300 mm
Height: 340 mm
Packaging dimension: length: 455 mm
Packaging dimension: width: 380 mm
Packaging dimension: height: 350 mm
Tank/drain body
Pressure pipe connection (DN): 32
Pressure pipe connection (OD): 40 mm
Number of inlets: 5
Tank volume: 30 l
Inlet vertical (DN): 40
Inlet horizontal (DN): 50
Pumping device
Pump: GTF 500
Number of pumps: 1
Weight, pump: 6 kg
Connection type: Schuko (earthed contact) 2-pin
Operating voltage: 230 V
Rated current: 2,7 A
Protection class: I
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Hot water resistance for a short time (2 min): 80 °C
Max. pumping capacity: 10 m³/h
Max. pumping height: 8 m
Speed: 2800 U/min
Power P1: 0,6 kW
Power P2: 0,36 kW
Operating mode: S1
Type of fuse required (electrical protection): C 16 A
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Free passage: 10 mm
Length of mains cable for pump: 5 m
Control
Level measurement instrument: Float switch
Type of level measurement: mechanical
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: Schuko (earthed contact) 2-pin
Type of fuse required (electrical protection): C 16 A
