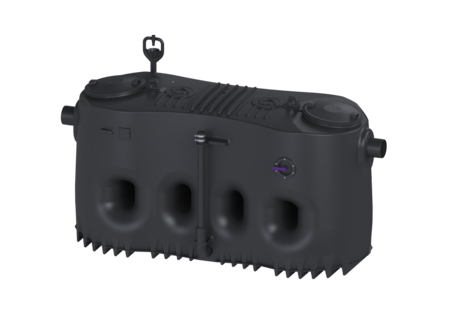

Açıklama
Variant
Direction of flow: left
Shredder-Mix-System: no
Inspection window: yes
Nominal size (NS): 15
SonicControl: no
Refill inlet in accordance with DIN 1988: yes
Type of disposal: manual
General characteristics
Material: PE
Installation situation: free-standing installation
Delivery state: Installation-ready (connection parts must be connected on site)
Scope of delivery: Storz-B coupling R 2 1/2″ for disposal vehicle connection
Dimensions
Net weight: 360 kg
Gross weight: 435 kg
Set-up area, length: 3530 mm
Set-up area, width: 1490 mm
Set-up area, height: 1950 mm
Packaging dimension: length: 3530 mm
Packaging dimension: width: 1490 mm
Packaging dimension: height: 2085 mm
Tank/drain body
Nominal pressure (PN): 10
Pressure pipe connection (DN): 65
Pressure pipe connection (OD): 75 mm
Distance pipe bottom outlet to tank bottom: 1130 mm
Distance pipe bottom inlet to tank bottom: 1200 mm
Outlet nominal size (OD): 200 mm
Outlet nominal size (DN): 200 mm
Inlet nominal size (OD): 200 mm
Inlet nominal size (DN): 200 mm
Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS
Servicing opening: 420 mm
Coverage features
Type of cover: Cover
Cover material: Polymer
Colour of cover: violet
Locking: Quick-release closure
Tightness: odour-tight
Wastewater contents
Separator contents: 2230 l
Total volume: 3730 l
Storage quantity of grease: 600 l
Control
Control unit: no
