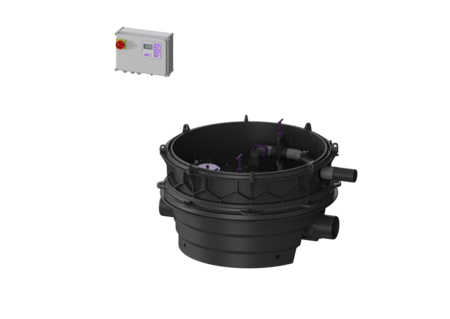

Quick-release closures enable the integrated components to be removed easily. Normally, draining takes place via the natural fall to the sewer. In case of backwater, the closure system is closed by the backflowing water. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater into the sewer. The pressure pipe is a welded PE pipe; with pump SPF 4500, the pressure pipe must also be continued up to a pressure release chamber. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories.
Variant
Note on installation depth: Version for deeper installation
Type of system: Single unit
Shut-off valve: Shut-off valve made of polymer
Passage seal for conduit pipe (DN): 100
Passage seal for ventilation pipe (DN): 70
Pump control: Control unit
Backflow preventer: integrated
Pressure pipe connection: horizontal
Mechanical backwater flaps: 2
General characteristics
Colour: black
Standard: ÖNORM B 2501
Type of wastewater: without sewage
Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
Backwater protection: Type 2
Approval: Z-53.2-493
Dimensions
Net weight: 111,83 kg
Gross weight: 133,61 kg
Groundwater resistant from lower edge of base section: 3000 mm
Vertical drop between inlet and outlet: 15 mm
Length: 1245 mm
Width: 1200 mm
Height: 657 mm
Packaging dimension: length: 2000 mm
Packaging dimension: width: 1300 mm
Packaging dimension: height: 950 mm
Tank/drain body
Pressure pipe connection (DN): 80
Pressure pipe connection (OD): 90 mm
Channel: continuous channel
Venting connection (DN): 70
Distance pipe bottom outlet to tank bottom: 120 mm
Distance pipe bottom inlet to tank bottom: 135 mm
Number of outlets: 1
Outlet nominal size (DN): 150 mm
Inlet nominal size (DN): 150 mm
Number of inlets: 1
Clear width of tank (LW): 1000 mm
Pumping volume: 20 l
Tank volume: 65 l
Pumping device
Pump: SPF 1500-S1
Number of pumps: 1
Weight, pump: 24 kg
Connection type: Direct connection
Rated current: 2,7 A
Protection class: I
Insulation class: F
Cos phi – power factor: 0,77
Protection class (pump): IP 68 (3m/48h)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C

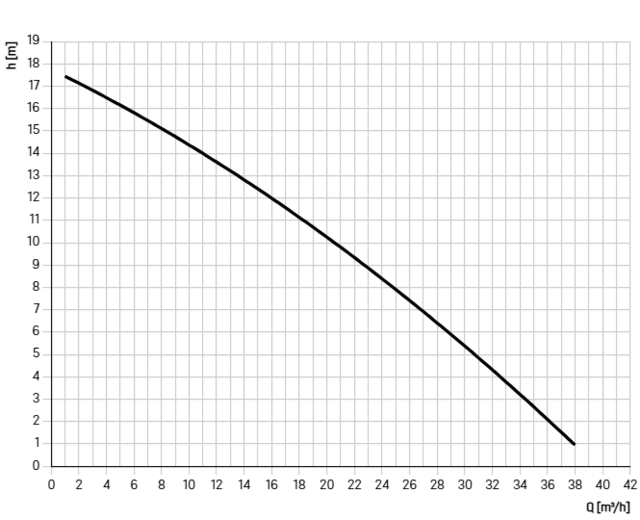

Max. pumping capacity: 28 m³/h
Max. pumping height: 7,5 m
Speed: 1415 U/min
Power P1: 1,4 kW
Power P2: 1,1 kW
Operating mode: S3 – 50 %
Type of fuse required (electrical protection): 3 x C 16 A
Type of pump connection cable: H07RN-F 7G 1.5 mm²
Impeller type: Multi-vane impeller
Free passage: 40 mm
Length of mains cable for pump: 10 m
Control
Control unit: Comfort Plus
Motor protection switch: yes
Standby power: 5 W
Alarm sensor: optical probe
Level measurement instrument: Immersion pipe
Type of level measurement: pneumatic
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 400 V
Connection type: Direct connection
Potential-free contact: yes
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
Type of fuse required (electrical protection): 3 x C 16 A
