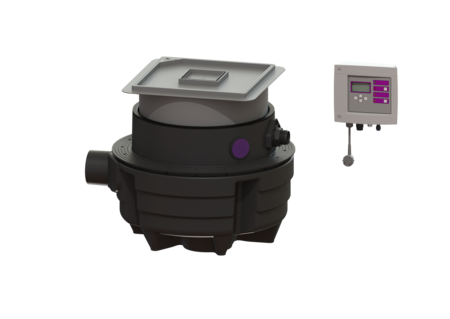

Variant
Type of system: Single unit
Shut-off valve: without shut-off valve
Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
Pump control: Control unit
Backflow preventer: integrated
Pressure pipe connection: horizontal
General characteristics
Colour: black
Type of wastewater: with sewage
Installation situation: floor slab installation
Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
Approval: Z-53.2-484
System type: Mono
Odour trap: Multistop
Dimensions
Net weight: 32,5 kg
Gross weight: 37,5 kg
Groundwater resistant from lower edge of base section: 3000 mm
Cutout dimension, width: 800 mm
Cutout dimension, length: 800 mm
Installation depth: 490 – 600 mm
Type of height adjustability: vertically adjustable upper section
Length: 670 mm
Width: 590 mm
Packaging dimension: length: 620 mm
Packaging dimension: width: 620 mm
Packaging dimension: height: 1030 mm
Tank/drain body
Pressure pipe connection (DN): 32
Pressure pipe connection (OD): 40 mm
Connection conduit pipe (DN): 50
Venting connection (DN): 70
Distance from centre of outlet pipe to tank bottom: 351 mm
Distance pipe bottom outlet to tank bottom: 351 mm
Distance pipe bottom inlet to tank bottom: 152 mm
Distance from centre of inlet pipe to tank bottom: 207 mm
Inlet nominal size (OD): 110 mm
Inlet nominal size (DN): 100 mm
Number of inlets: 1
Pumping volume: 20 l
Tank volume: 40 l
Coverage features
Type of cover: tileable cover plate
Cover material: Polymer
Width of cover: 366 mm
Length of cover: 366 mm
Drainage function: yes
Locking: Lock & Lift
Max. flooring height: 16 mm
Pumping device
Pump: SPZ 1000 resistant
Number of pumps: 1
Weight, pump: 10 kg
Connection type: coded plug
Rated current: 5,2 A
Protection class: I
Insulation class: F
Cos phi – power factor: 0,97
Protection class (pump): IP 68
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Hot water resistance for a short time (2 min): 80 °C
Max. pumping capacity: 11,5 m³/h
Max. pumping height: 10 m
Speed: 2800 U/min
Power P1: 1,2 kW
Power P2: 0,69 kW
Operating mode: S3 – 50 %
Type of fuse required (electrical protection): Fuse protection through control unit 230 V
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Macerator
Length of mains cable for pump: 5 m
Control
Control unit: Comfort
Control unit function: With alarm message
Motor protection switch: yes
Alarm sensor: optical probe
Level measurement instrument: Immersion pipe
Type of level measurement: pneumatic
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: coded plug
Length of mains cable for control unit: 1,4 m
Potential-free contact: optional
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
Warning equipment version: acoustic and optical signal
Type of fuse required (electrical protection): Fuse protection through control unit 230 V
