Açıklama
Variant
Type of system: Single unit
Shut-off valve: without shut-off valve
Retaining bracket for the lift protection: yes
Sound absorption mat: yes
Resistant: Resistant to waste water containing salt, softener and condensate
Pump control: Control unit
Backflow preventer: integrated
Pressure pipe connection: horizontal
General characteristics
Colour: black
Type of wastewater: with sewage
Installation situation: free-standing installation
Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
Approval: Z-53.2-484
System type: Mono
Dimensions
Net weight: 24 kg
Gross weight: 26,5 kg
Groundwater resistant from lower edge of base section: 3000 mm
Length: 670 mm
Width: 580 mm
Height: 395 mm
Packaging dimension: length: 620 mm
Packaging dimension: width: 620 mm
Packaging dimension: height: 515 mm
Tank/drain body
Pressure pipe connection (DN): 32
Pressure pipe connection (OD): 40 mm
Venting connection (DN): 70
Distance from centre of outlet pipe to tank bottom: 350 mm
Distance pipe bottom inlet to tank bottom: 152 mm
Distance from centre of inlet pipe to tank bottom: 207 mm
Inlet nominal size (OD): 110 mm
Inlet nominal size (DN): 100 mm
Number of inlets: 1
Pumping volume: 20 l
Tank volume: 40 l
Pumping device

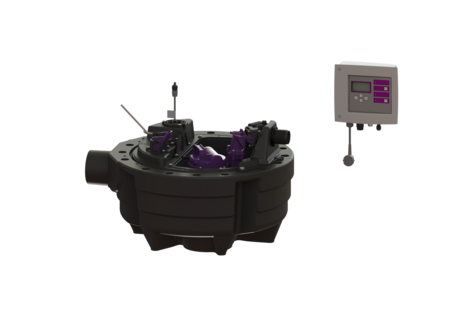

Pump: SPZ 1000 resistant
Number of pumps: 1
Weight, pump: 10 kg
Connection type: coded plug
Protection class: I
Insulation class: F
Cos phi – power factor: 0,97
Protection class (pump): IP 68
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 11,5 m³/h
Max. pumping height: 10 m
Speed: 2800 U/min
Power P1: 1,2 kW
Power P2: 0,69 kW
Operating mode: S3 – 50 %
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Macerator
Length of mains cable for pump: 5 m
Rated current: 5,2 A
Control
Control unit: Comfort
Control unit function: With alarm message
Motor protection switch: yes
Alarm sensor: optical probe
Level measurement instrument: Immersion pipe
Type of level measurement: pneumatic
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: coded plug
Length of mains cable for control unit: 1,4 m
Potential-free contact: optional
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
Warning equipment version: acoustic and optical signal
Type of fuse required (control unit): Fuse protection through control unit 230 V
