Açıklama

KESSEL technology kit consisting of:

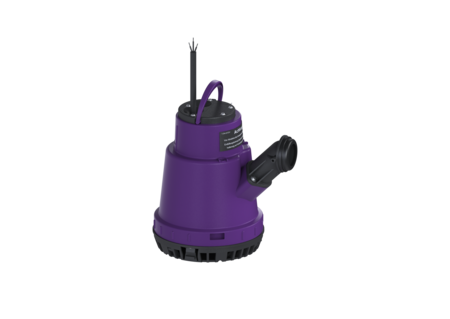

– Pump with multi-vane vortex impeller for maximum operating safety

– Includes float switch for level measurement

Variant

Type of system: Single unit

Pump control: Float switch

Backflow preventer: integrated

Dimensions

Net weight: 4,21 kg

Gross weight: 4,49 kg

Packaging dimension: length: 280 mm

Packaging dimension: width: 250 mm

Packaging dimension: height: 280 mm

Pumping device

Pump: KTP 300

Number of pumps: 1

Weight, pump: 4 kg

Connection type: Schuko (earthed contact) 2-pin

Operating voltage: 230 V

Rated current: 1,6 A

Protection class: I

Insulation class: F

Protection class (pump): IP 68 (3m)

Temperature monitoring: integrated

Max. temperature (permanent) of conveyed material: 40 °C

Max. pumping capacity: 8 m³/h

Max. pumping height: 6 m

Speed: 2800 U/min

Power P1: 0,34 kW

Power P2: 0,21 kW

Operating mode: S1

Type of fuse required (electrical protection): C 16 A

Type of pump connection cable: H07RN-F 3G 1.5 mm²

Impeller type: Multi-vane impeller

Length of mains cable for pump: 5 m

Control

Mains frequency: 50 Hz

Operating voltage: 230 V

Connection type: Schuko (earthed contact) 2-pin

Type of fuse required (electrical protection): C 16 A
