Açıklama

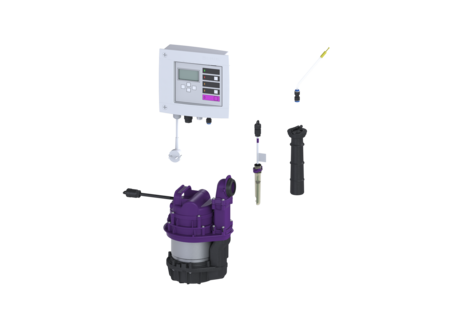

KESSEL technology kit consisting of:

– Pump with macerator and multi-vane vortex impeller for maximum operating safety

– Comfort control unit 230 V

– Optical alarm probe

– Pneumatic level measurement

Variant

Type of system: Single unit

Pump control: Control unit

Dimensions

Net weight: 13,5 kg

Gross weight: 13,5 kg

Packaging dimension: length: 420 mm

Packaging dimension: width: 420 mm

Packaging dimension: height: 340 mm

Pumping device

Pump: SPZ 1000

Number of pumps: 1

Weight, pump: 10 kg

Connection type: coded plug

Rated current: 5,2 A

Protection class: I

Insulation class: F

Cos phi – power factor: 0,97

Protection class (pump): IP 68 (3m/48h)

Temperature monitoring: integrated

Max. temperature (permanent) of conveyed material: 40 °C

Hot water resistance for a short time (2 min): 80 °C

Max. pumping capacity: 11,5 m³/h

Max. pumping height: 10 m

Speed: 2800 U/min

Power P1: 1,2 kW

Power P2: 0,69 kW

Operating mode: S3 – 50 %

Type of fuse required (electrical protection): Fuse protection through control unit 230 V

Type of pump connection cable: H07RN-F 3G 1.5 mm²

Impeller type: Macerator

Length of mains cable for pump: 5 m

Control

Control unit: Comfort

Control unit function: With alarm message

Motor protection switch: yes

Alarm sensor: optical probe

Level measurement instrument: Immersion pipe

Type of level measurement: pneumatic

Protection class control unit: IP 54

Mains frequency: 50 Hz

Operating voltage: 230 V

Connection type: coded plug

Length of mains cable for control unit: 1,4 m

Potential-free contact: optional

GSM interface: yes

USB interface: yes

Log book function: yes

Multi-line display: yes

Battery buffering: yes

Self-diagnosis system (SDS): yes

Warning equipment version: acoustic and optical signal

Type of fuse required (electrical protection): Fuse protection through control unit 230 V
