Zemin Altı Tahliye Pompalı Yağ Ayırıcı

Material: polymer
Einbau: for frost-free depth

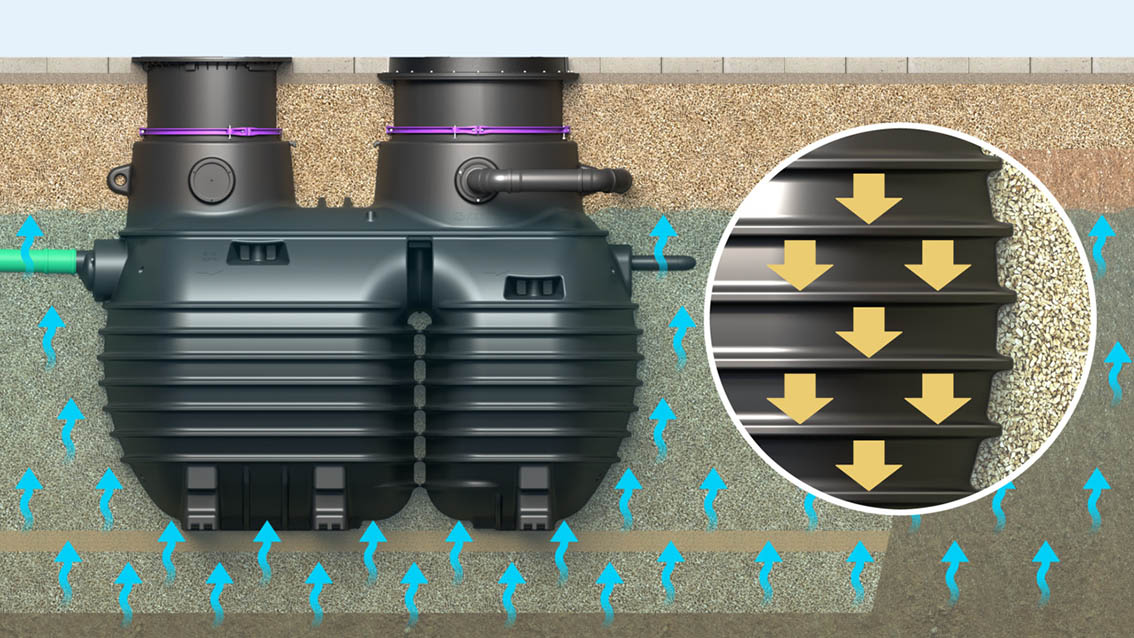

• Installation up to groundwater GL
• a load distribution slab must be provided for load class D
• Class B = 550 mm ≤ DSC ≤ 1200 mm
Class D = 720 mm ≤ DSC ≤ 1200 mm
• minimum installation depth achievable by cutting
the upper section to the required length
Version includes: Grease separator in spirally wound
pipe, with integrated sampling, pump station in wet
installation with GTK 1300-S1 pumps (refer to page
145 for data), telescopic height-adjustable upper
section made of plastic, cover class A/B, D (class D
with Lock & Lift function) to EN 124 made of GG (can
be driven over by cars and trucks), closed odour-tight
Delivery: Separator completely assembled, pumps
separate
Note: Further nominal sizes and installation depths
on request
↗ Accessories: SonicControl grease layer thickness
measuring device
